Gerry's Messy Electronics/Robotics
Laboratory

Click the button below to go Back to the "CHIPPERY " section of my Lab

-= BACK =-

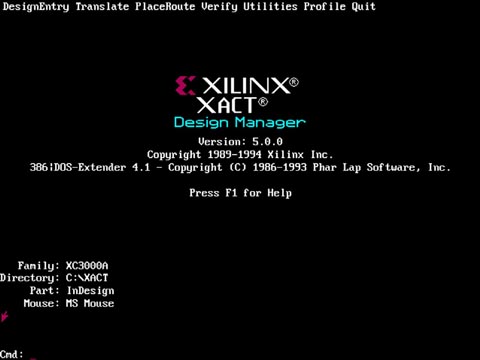

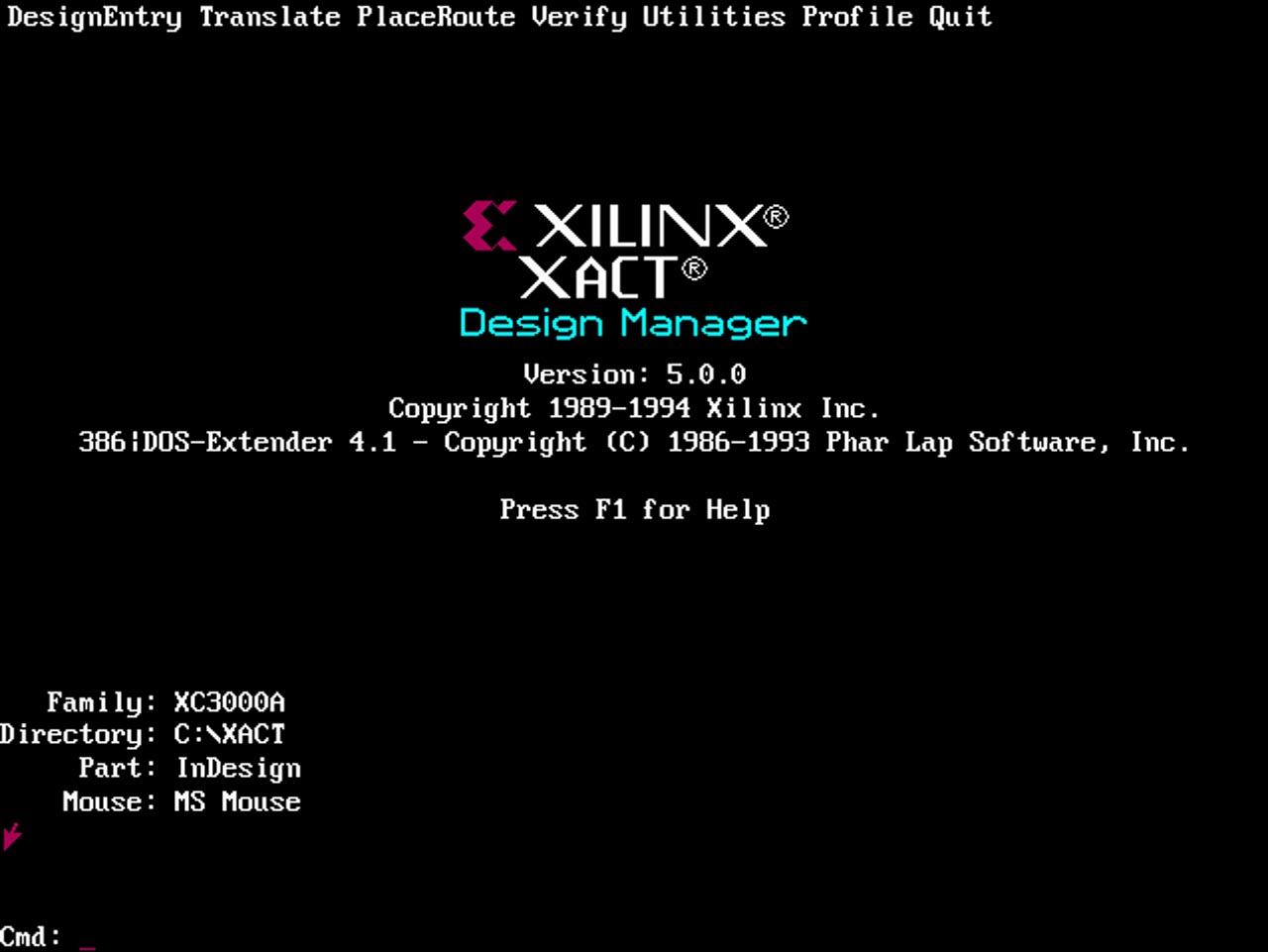

Xilinx Classic DOS based Design software

"XACT"

Design Manager

Check out the XACT Design Manager Software Reference Guide for more details @ the Link below:

http://www.digital-circuitry.com/DOC/ELECTRONICS/Xilinx/XACT/XACT_DESIGN_MANAGER_Vol1.pdf





Xilinx Classic CPLD Programmer

"HW-130"

RS-232 Programmer

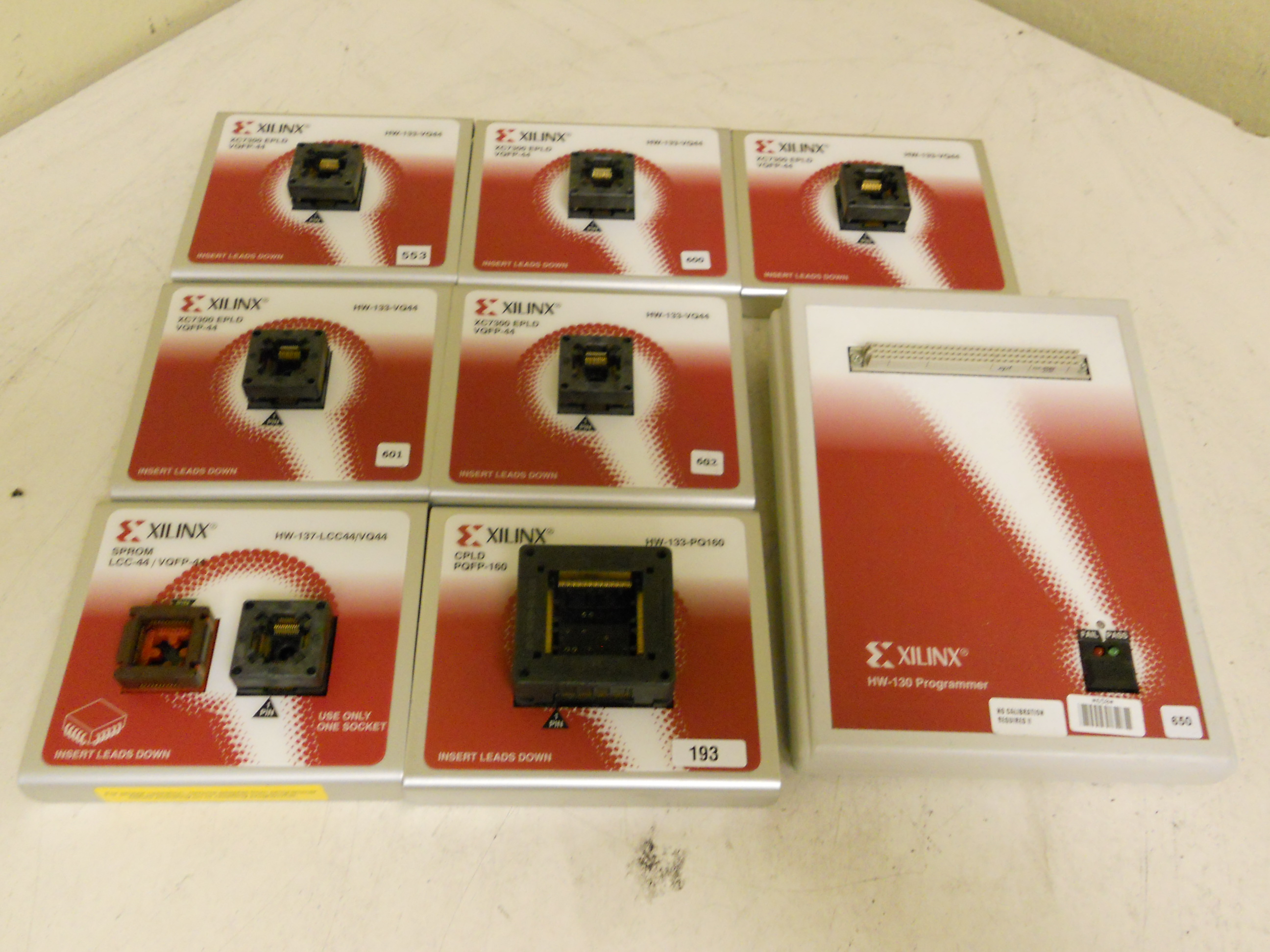

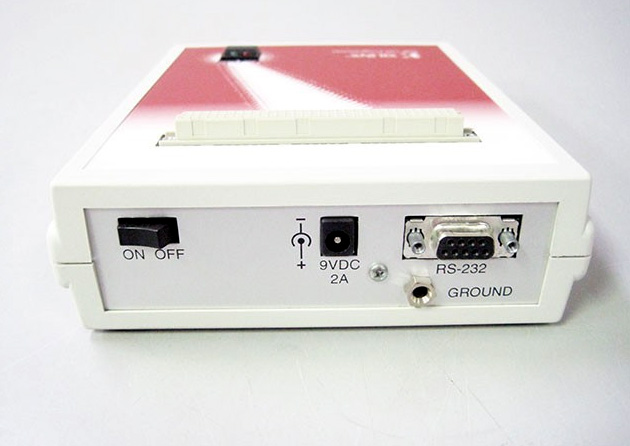

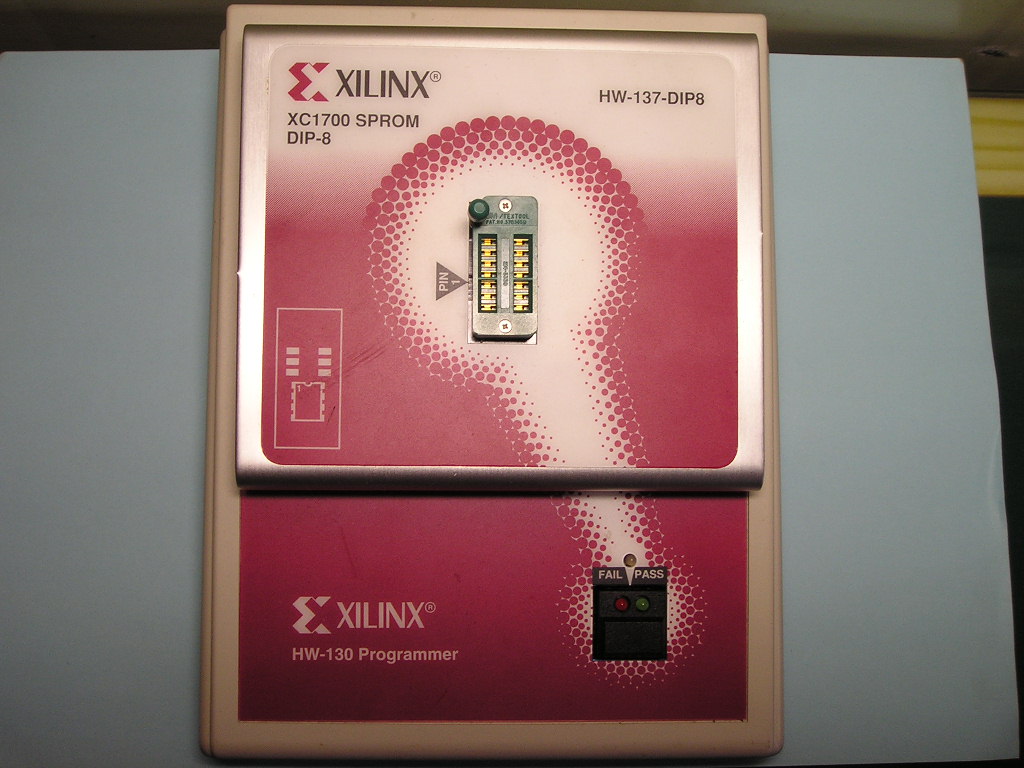

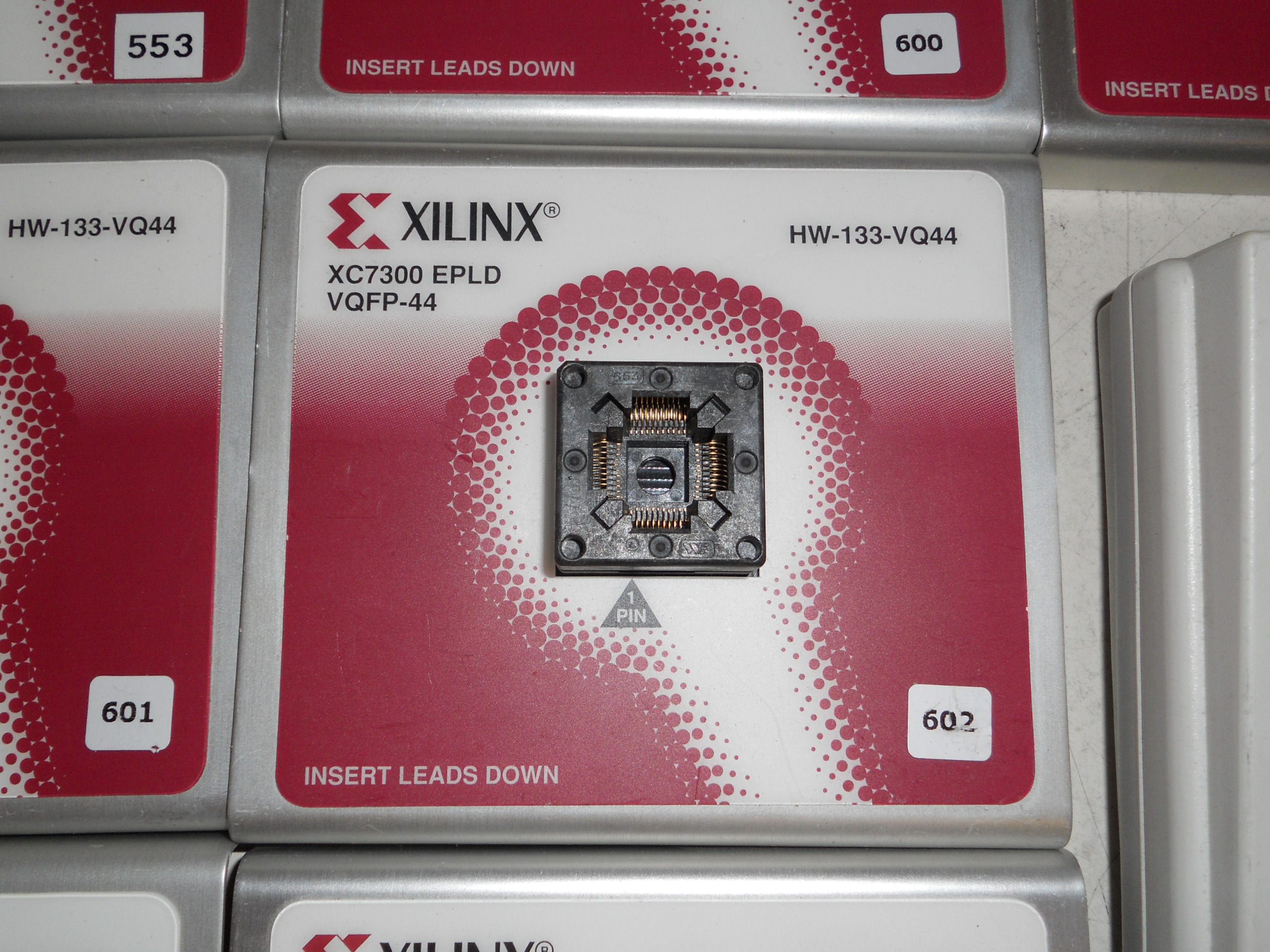

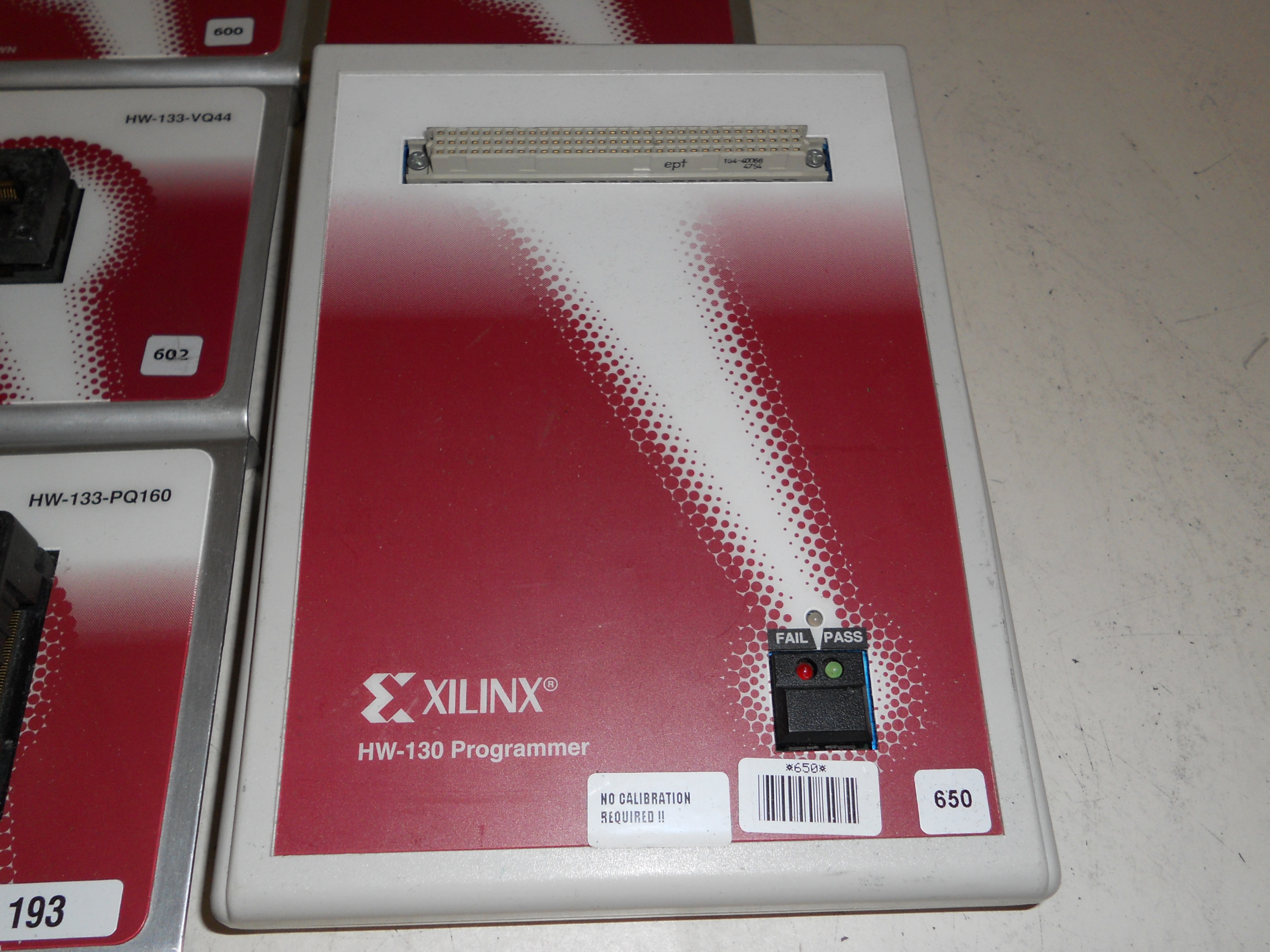

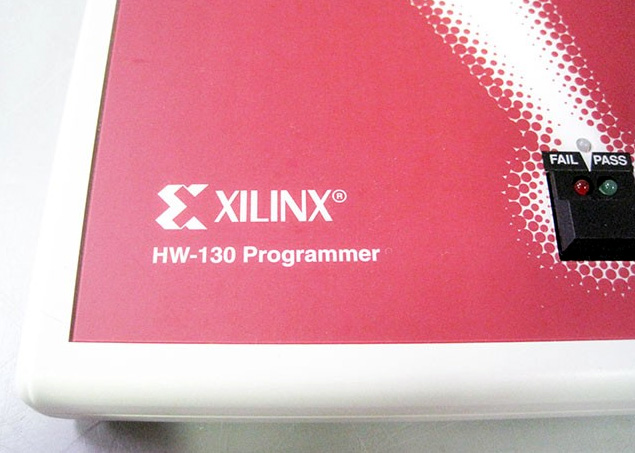

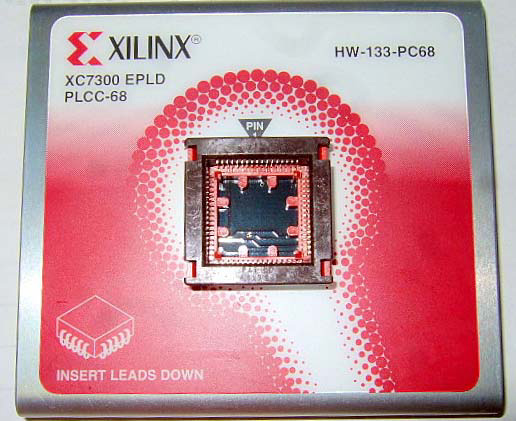

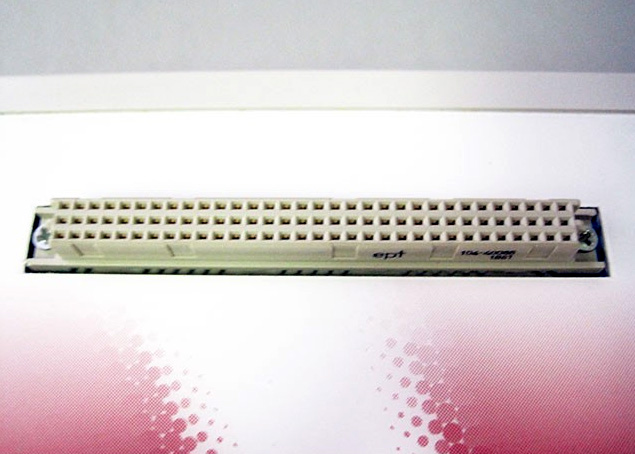

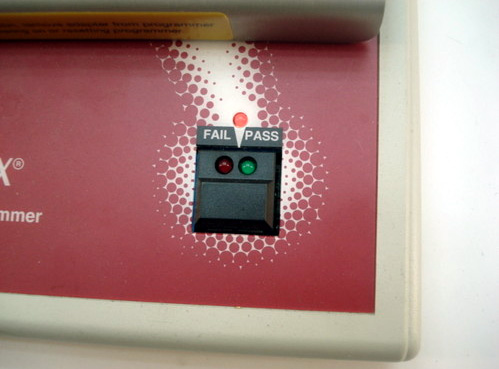

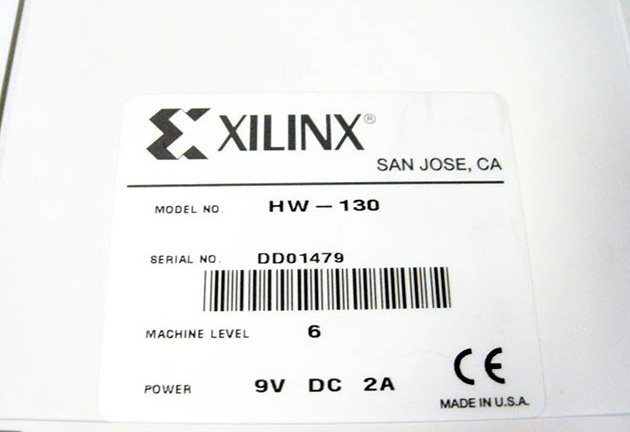

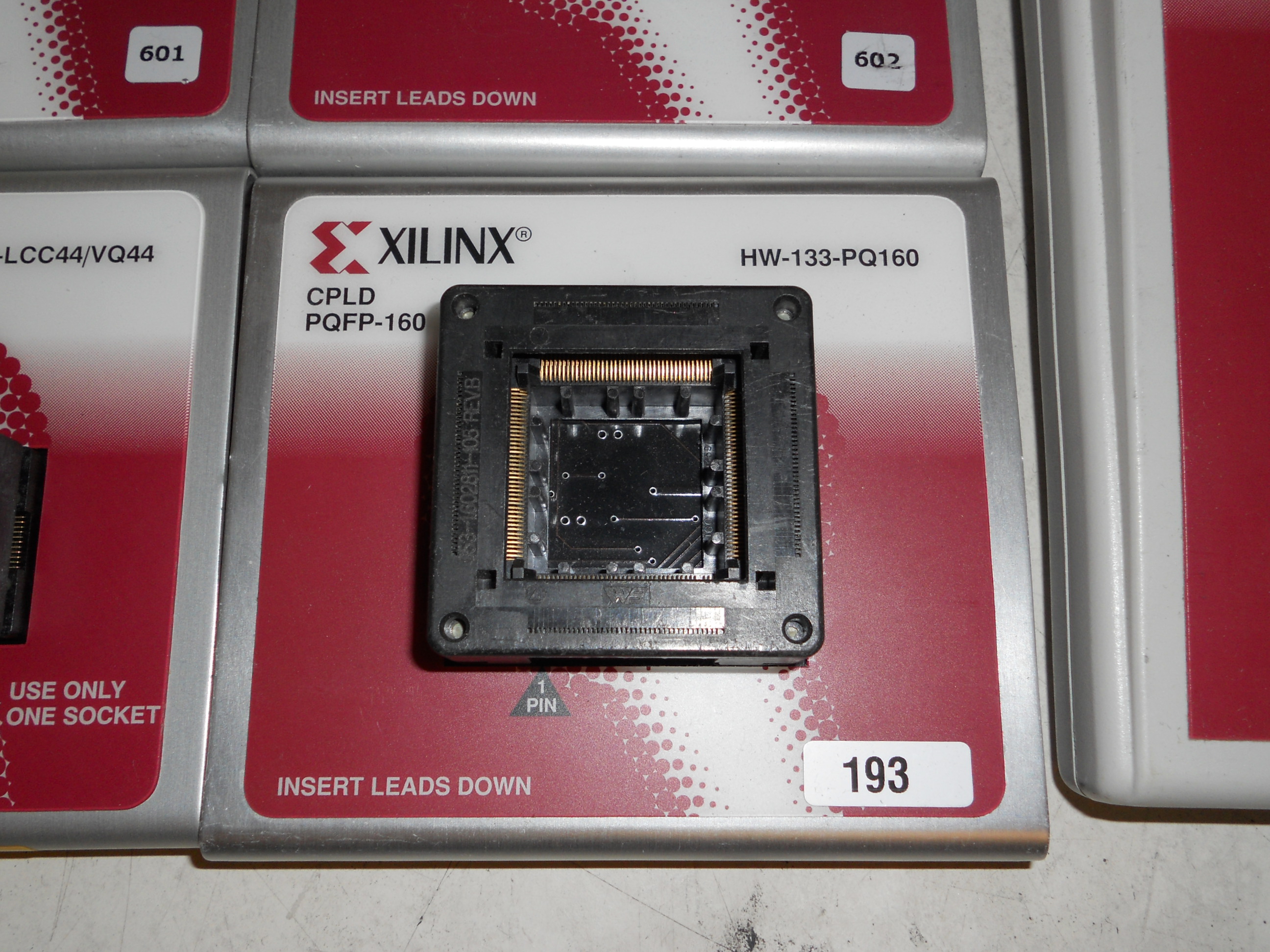

Shown below is the Xilinx HW-130 CPLD Programmer. The Programmer supports the XC1700 Serial PROMs, XC7300 & XC9500 CPLDs. Various adapters are available for all the different Device package types.

This Programmer provides the ability to Program, Erase and verify CPLD Devices. One can also assert a Security bit for Logic design protection against piracy theft. Blank Check and also Signiture ID test can be performed on connected devices. Many other funtions are also available.

See the Units Users Guide for more details at the Download link shown below:

http://www.digital-circuitry.com/DOC/ELECTRONICS/Xilinx/HW-130_Programmer/HW-130_User_Guide.pdf



Also read the section entitled "HW-130 Programmer" from the Xilinx 1998 Databook. Link Below:

http://www.digital-circuitry.com/DOC/ELECTRONICS/Xilinx/Manuals_&_Guides/Xilinx_DATABOOK_1998/Xilinx_DATABOOK_1998.zip

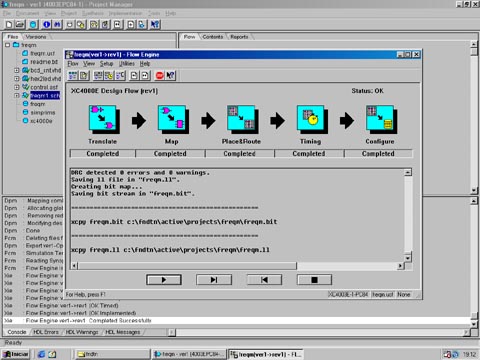

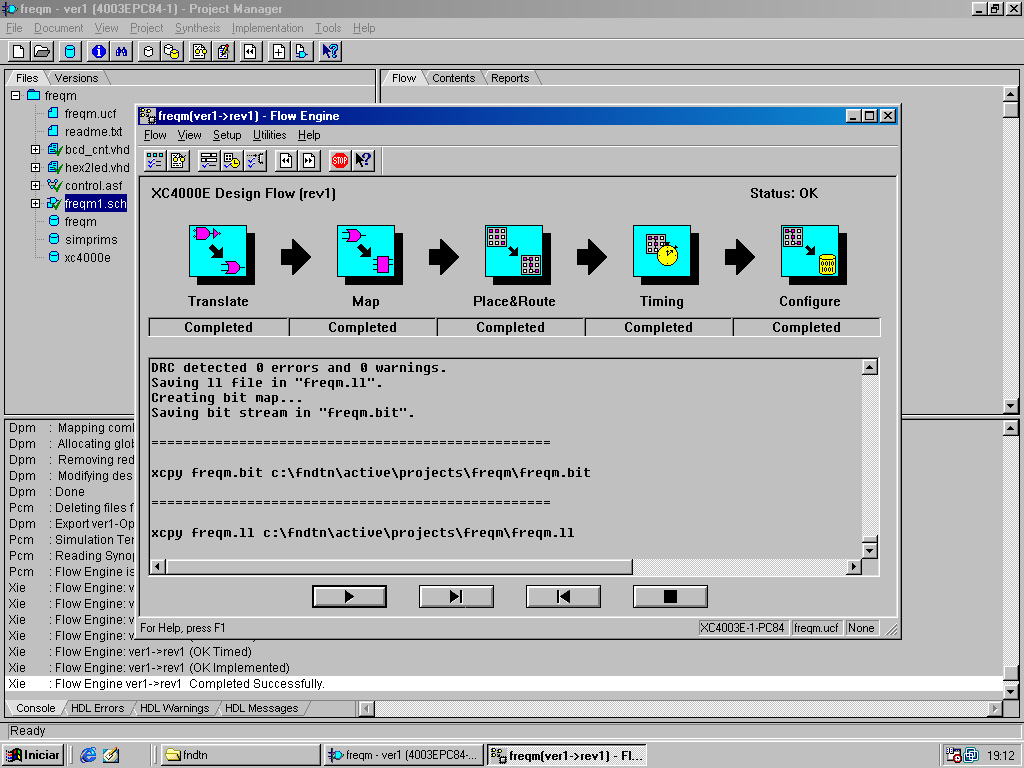

Xilinx "Foundation" Series Software GUI

See the Links below for various Xilinx Foundation Series User Guides.

http://www.digital-circuitry.com/DOC/ELECTRONICS/Xilinx/Manuals_&_Guides/Xilinx_Foundation/Foundation2.1i_User_Guide.pdf

http://www.digital-circuitry.com/DOC/ELECTRONICS/Xilinx/Manuals_&_Guides/Xilinx_Foundation/Foundation_Series_4_User_Guide.pdf

http://www.digital-circuitry.com/DOC/ELECTRONICS/Xilinx/Manuals_&_Guides/Xilinx_Foundation/Xilinx_Foundation_1-5i_Tutorials.pdf



If you're into Xilinx CPLD's you can Join my Xilinx_MASTERS Group :

http://tech.groups.yahoo.com/group/Xilinx_MASTERS_/
